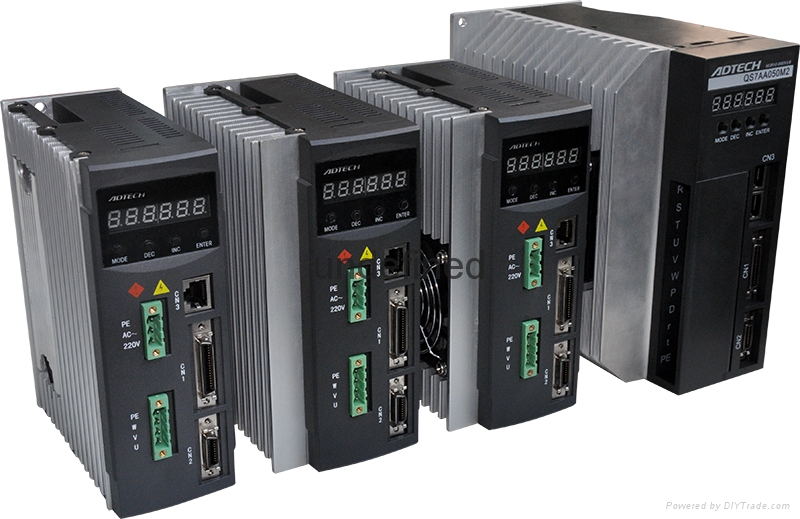

High-precision QS7AA010M AC Servo Motor Driver
Series 1 : QS1 Series Servo Driver (Economical Type)
With the torque, speed, location, point-to-point positioning
and hybrid switching functions;
Built-in 4 sections of the location positioning control
instructions, free design point-to-point positioning control;
Adopt intelligent space vector control algorithm (SVPWM)
to produce torque greater than the ordinary PWM, quieter;
Position loop has position smoothing system to make the
action smoothly;
With the rated speed of 3000RPM, and an optional (1024,
2048, 2500) p / r encoder feedback pulse accuracy;
Three times overload with a load capacity;
Protection features: over current, over voltage,
overheating and encoder fault etc.
Series 2: Qs7 Series Servo Driver (Universal Type)
Power range: 0.1KW~5.5KW
Voltage input: AC200V-230V, use single-phase/twophase
or three-phase input
Position/Speed/Torque control mode;
Built-in single axis positioning control function
(degree of control, zero return, auto-loop positioning
control, position teaching);
Support Modbus communication protocol, multi-axis
bus control (communication interfaces: RS-485/RS-
232)
Perfect Protection Function: over-current, overvoltage,
over-heating and encoder bug, etc.
Series 3: QS2 Series Low-Voltage Servo Driver
Power range: 0.1KW – 0.4KW
Voltage input: 24-80V DC,
Built-in variety of algorithms, rich control mode, easy to
setup, perfect protection, compact size, cost-effective
Support Modbus communication protocol, multi-axis bus
control (communication interfaces: RS-485/RS-232)
